Oukitel F150 B2021 battery replacement: complete DIY guide

The Oukitel F150 B2021 takes a 8000 mAh Li-Po cell, and replacing it yourself takes about 45 minutes with the right tools. If your battery is draining in half a day, swelling, or the phone shuts off at 20%, it's time to swap it out.

One quick note before we get started: this phone is the Oukitel F150 B2021, a rugged Android handset. The "F150" in the name has nothing to do with the Ford F-150 pickup truck or any Ford F150 replacement battery you'd find at an auto parts store. We get search traffic mixing the two up constantly. If you landed here looking for a truck battery, you're in the wrong place. If you landed here because your Oukitel B2021 is dying, you're exactly where you need to be.

What you'll need before you start

Get these together before you open anything. Stopping mid-repair to hunt for a screwdriver is how connectors get damaged.

• Replacement Oukitel F150 B2021 battery (rated 8000 mAh, 3.87V nominal)
• T5 Torx screwdriver
• Phillips #00 screwdriver
• Plastic spudger and opening picks
• Suction cup handle (optional but helpful)
• Tweezers
• Isopropyl alcohol, 90% or higher
• Adhesive strips pre-cut for the B2021, or B-7000 adhesive
• A clean, flat surface with good lighting

The B2021 is a rugged phone with an IP68/IP69K rating, so Oukitel used strong perimeter adhesive to keep water out. That adhesive is the trickiest part of this job. Take your time with it and you won't crack the frame or rear panel.

Is your battery actually the problem?

Worth ruling out a software issue first. Go to Settings > Battery and check usage stats. If one app is eating 60% of your battery, uninstall it and see if that fixes things before cracking the phone open.

Signs that point to a hardware battery failure:

• The phone shuts down at 15 to 30% charge remaining
• Battery percentage jumps around erratically
• The rear panel or battery looks visibly swollen
• Charge time has gotten noticeably longer
• The phone gets very warm during normal use, not just gaming

If you're seeing two or more of those, the cell is failing. An 8000 mAh battery in a rugged phone like this should give you two full days of normal use when it's healthy. If you're charging every night on light use, the capacity has degraded significantly.

Step-by-step: Oukitel F150 B2021 battery replacement

Step 1: Power down and prep

Power the phone completely off. Don't just lock the screen. Remove the SIM tray now so you don't forget it later and accidentally damage it during reassembly. Set the phone face-down on a clean cloth.

Step 2: Remove the back cover screws

The B2021 has screws around the perimeter of the back cover. There are typically 12 to 14 screws depending on production batch, mostly T5 Torx. Remove every single one and set them in a small container. They're all the same length on this model, so you don't need to track positions separately, but don't lose any.

Step 3: soften the adhesive

This is where most people run into trouble. The perimeter adhesive is thick and tacky. Use a heat gun or iOpener on low heat and work around the edges for about 60 to 90 seconds. You're not trying to cook the phone, just warm the glue to around 140 to 160°F so it gets pliable. A hairdryer on high works in a pinch but takes longer.

Step 4: Open the back panel

Slide a plastic opening pick into the seam along one of the longer edges. Work slowly. The adhesive will resist. Keep the pick almost flat against the cover to avoid cracking the plastic frame. Once you have one long edge free, work around the corners and then the shorter edges. Don't yank. Peel steadily.

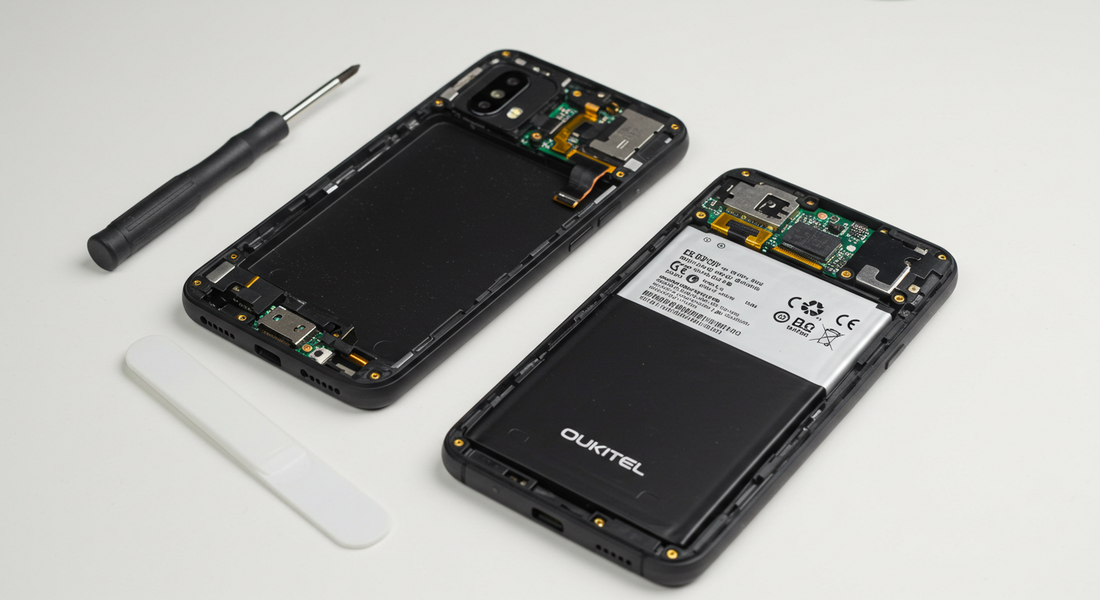

The back panel will lift off. Set it aside. You'll see the battery sitting in the middle of the board layout, taking up most of the interior space. At 8000 mAh, it's a big cell.

Step 5: Disconnect the battery connector

Before touching any other connectors, disconnect the battery first. Use your spudger to carefully pry up the small ZIF (zero insertion force) connector tab, then lift the battery cable straight up from its socket. Don't pry at the socket itself, pry at the connector body.

Step 6: Remove the battery

Oukitel uses adhesive strips under the battery on the B2021. Pull the pull-tabs slowly at a low angle, like a phone screen protector. If they break (they often do), apply a few drops of isopropyl alcohol along the edges of the battery and wait 60 seconds for it to wick under and weaken the adhesive. Then use your spudger to gently lever the battery up from a corner. Don't bend it sharply or puncture it.

Step 7: Clean and prep the bay

Wipe out any residual adhesive from the battery bay with isopropyl alcohol on a swab. It doesn't need to be perfect, but you want a reasonably flat surface so the new cell sits flush. Let it dry fully before putting the new battery in.

Step 8: Install the new battery

Place your pre-cut adhesive strips in the battery bay, peel the top liner, and set the new battery in place. Press firmly for about 30 seconds. Route the connector cable so it reaches the socket without strain. Press the connector down firmly until it clicks or seats flat. Give it a gentle tug to confirm it's locked.

Step 9: Test before sealing

Don't close the phone yet. Plug in a charger. The phone should power on and show a charging indicator. Boot it fully and confirm the battery percentage is registering. If it reads 0% and won't move, reseat the connector. If everything looks good, power back off before sealing.

Step 10: Reseal the back cover

Apply fresh adhesive to the back cover channel. Pre-cut adhesive strips designed for rugged phones are the cleanest option. B-7000 adhesive works but needs about 24 hours to fully cure and you'll want to clamp the phone while it sets. Press the cover down firmly, reinstall all screws in a cross pattern to distribute pressure evenly, and reinstall the SIM tray.

Sourcing the right replacement cell

The Oukitel F150 B2021 uses a proprietary cell. You want one rated at 8000 mAh, 3.87V, with the correct connector orientation. Generic cells pulled from unrelated phones won't fit the battery bay correctly and may have mismatched connector positions.

PhonePartPro stocks replacement cells for a wide range of Android devices. Browse our full Replacement Batteries for Phones & Tablets collection for in-stock options with fast US shipping. If you do other Android repairs, our repair guides hub at phonepartpro.com/blogs/news covers a lot of common models with the same level of detail as this guide.

Budget around $15 to $35 for a quality replacement cell for the B2021. Suspiciously cheap cells below $10 are usually recycled or relabeled with inflated capacity ratings. You won't get anywhere near 8000 mAh out of them.

A word on DIY battery replacement for other Android phones

The process on the B2021 is more involved than on a non-rugged phone because of the IP-rated sealing, but the core skills transfer. If you've done this job, you can handle most Android battery replacements. We have detailed walkthroughs for Google Pixel devices if you work on those too. Check out our Pixel 4a 5G Battery Replacement: Cost & Guide, the Pixel 5 Battery Replacement: Cost & DIY Guide, and the Pixel 5a Battery Replacement: Cost & DIY Guide. The adhesive situation on those is much friendlier than the B2021.

After the replacement: first charge tips

Don't fast-charge the new battery for the first two or three cycles. Charge it slowly to 100%, let it drain to around 20%, and repeat. This helps the battery management system (BMS) calibrate to the new cell's actual capacity. After that, charge however you want.

Also, if you used B-7000 adhesive to reseal the back cover, wait 24 hours before dunking the phone in water or taking it into a heavy rain. The adhesive needs time to cure before it'll hold the IP rating.

FAQ

How long does the Oukitel F150 B2021 battery last before it needs replacing?

Li-Po cells typically hold up for 400 to 500 full charge cycles before dropping to around 80% of original capacity. For most users, that's 2 to 3 years of daily use. Heavy users who charge daily from low may hit that mark closer to 18 months.

Is this the same battery as a Ford F-150 truck battery?

No, not at all. The Oukitel F150 B2021 is a rugged Android smartphone. Its name has nothing to do with the Ford F-150 pickup truck. A ford f150 replacement battery for a vehicle is a 12V automotive lead-acid or AGM battery you'd buy at an auto parts store. The phone battery is a small 8000 mAh Li-Po cell. Completely different products.

Can I replace the Oukitel B2021 battery without special tools?

You need at minimum a T5 Torx screwdriver, a plastic spudger, and something to heat the adhesive. Trying to open the back cover without softening the adhesive first almost always results in a cracked back panel or broken clips. The tool investment is under $20 and you'll use these tools for future repairs too.

Will replacing the battery void my warranty on the Oukitel F150 B2021?

Oukitel's standard warranty typically covers manufacturing defects, and opening the device yourself will usually void that coverage. If your phone is still within the warranty window, contact Oukitel support first. If it's out of warranty, DIY replacement is the most cost-effective option by a wide margin.

How do I know if I got the battery connector seated correctly after the repair?

Plug in the charger immediately after connecting the battery and before closing the phone. If the phone powers on or shows a charging animation, the connector is seated. If nothing happens, the connector is either not fully pressed down or is slightly misaligned. Disconnect, realign, and press firmly again. A properly seated connector will sit completely flat with no gap between the connector body and the socket.
