iPhone XS Max Battery Replacement: Cost & DIY Guide
An iPhone XS Max battery replacement runs about $89 at Apple, $60–$100 at a local repair shop, or under $40 if you do it yourself with a quality 3174mAh cell and a basic tool kit. It's a genuinely DIY-friendly repair for a patient beginner, and on a phone that launched back in September 2018, a fresh battery is by far the cheapest way to get another two or three years out of it.
The XS Max was Apple's first 6.5-inch flagship, and after six-plus years of daily charge cycles its original battery is almost certainly worn down. The good news: the internals are well documented, the part is inexpensive, and swapping it is one of the most satisfying repairs you can do on a kitchen table. Here's everything you need to decide and do it.
How to check your iPhone XS Max battery health
Before you buy anything, confirm the battery is actually the problem. On your iPhone, open Settings > Battery > Battery Health & Charging and look at Maximum Capacity. That number is the percentage of the original 3174mAh the battery can still hold.
- 80–100% — healthy. Your drain problem is probably a rogue app or a software setting, not the cell.
- Below 80% — Apple considers the battery worn. You'll often see a "Service" note here too.
- Peak Performance Capability message — if iOS mentions an unexpected shutdown, the battery can no longer deliver peak current and is throttling your A12 processor.
Also check Settings > Battery for the per-app breakdown over the last 10 days. If one app is eating 40% of your power, fix that first. If everything is normal but the phone still dies by mid-afternoon, the hardware is done.
Signs your iPhone XS Max battery is failing
A worn XS Max battery rarely fails all at once. Watch for these patterns:
- iPhone XS Max battery draining fast — going from 100% to dead in a few hours, or losing 20–30% overnight while idle.
- Sudden shutdowns — the phone powers off at 30–40% and won't restart until you plug it in, a classic sign the cell can't hold voltage under load.
- Slow performance — iOS throttles the processor to protect a weak battery, so apps and animations feel sluggish.
- iPhone XS Max battery not charging — or charging painfully slowly. Rule out the Lightning cable and clean the port first, but a swollen or dead cell will do this too.
- Heat — the phone gets noticeably warm just sitting on standby.
Safety note: if the screen is lifting off the frame, the back feels bulged, or you can rock the phone on a flat table, stop using it. That's battery swelling — the lithium cell is off-gassing. Never puncture, bend, or pry hard on a swollen battery; the vapors are flammable. Power the phone down, keep it away from heat, and replace the battery promptly.
iPhone XS Max battery replacement cost
Here's what you'll actually pay in 2026, from most to least expensive. Understanding the iPhone XS Max battery replacement cost up front makes the DIY math obvious.
| Option | Typical 2026 price | What you get |
|---|---|---|
| Apple / Apple-authorized | ~$89 | Genuine paired cell, Battery Health preserved, 90-day service warranty |
| Local repair shop | $60–$100 | Same-day labor, third-party battery, quality varies by shop |
| DIY with our part | Under $40 | Replacement 3174mAh battery + adhesive + tools; your labor is free |
The battery itself is a small part of that shop price — most of it is labor. Our iPhone XS Max replacement battery ships as a zero-cycle cell, meaning it hasn't been charged and discharged before reaching you, so you start at full rated capacity. Buying wholesale? PhonePartPro prices drop by quantity for repair shops working through a stack of these.

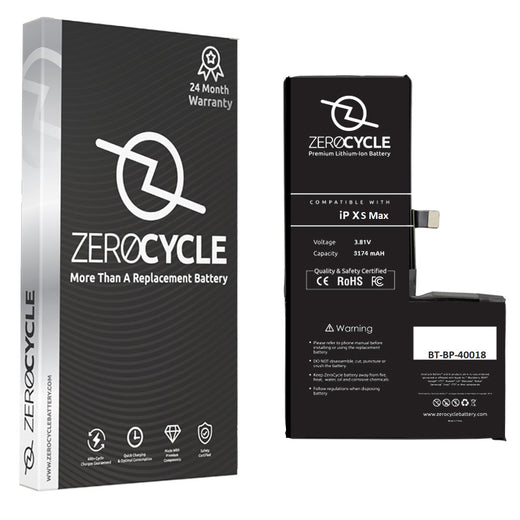

The exact replacement battery for the iPhone XS Max
Your XS Max needs a 3.8V, 3174mAh Li-ion battery. There is only one battery variant across every regional version of this phone, so you don't have to match a sub-model — the cell is identical whether your device is sold as A1921, A2101, A2102, A2103, or A2104. Check Settings > General > About if you want to confirm your model number, but any correctly labeled XS Max battery fits all of them.
When shopping for an iPhone XS Max OEM battery, look for a zero-cycle or genuine-capacity cell with a built-in protection circuit and the correct flex connector. Cheap no-name batteries often ship pre-aged or under-spec, which is why they die within a year. A quality cell should hold close to the full 3174mAh and last hundreds of charge cycles.
How to replace your iPhone XS Max battery yourself
Here's the honest overview of how to replace an iPhone XS Max battery. It's a moderate repair — not a first-timer's dream, but very doable if you go slow.
- Power down and heat the edges to soften the waterproof adhesive around the screen.
- Remove the two pentalobe screws at the bottom, then use a suction cup and pick to open the display. The XS Max opens from the left side like a book — go slowly, there's a ribbon cable along the right edge.
- Disconnect the battery first after removing the metal connector bracket. Always kill battery power before touching anything else.
- Pull the stretch-release adhesive tabs under the battery. Pull them slowly and parallel to the phone; if a strip snaps, a little heat and a plastic card under the cell will free it.
- Seat the new battery, apply fresh adhesive, reconnect the connectors, and test before you seal it.
Difficulty: moderate (6/10). Budget 45–60 minutes your first time. The two things that trip people up are the display ribbon cables when opening and the adhesive strips under the battery. Take pictures as you go, keep screws organized, and never reuse old waterproofing adhesive if you want to keep any water resistance. A full step-by-step lives in our battery replacement by model guide.
After the swap: the genuine-battery message
Here's the one thing every XS Max owner should know before they start. The iPhone XS, XS Max, and XR were the first iPhones to use battery authentication. After you install any non-Apple-paired battery, iOS will show "Unable to verify this iPhone has a genuine Apple battery," and the Maximum Capacity figure in Battery Health may read "Unknown" or stop updating.
This is a software notice, not a fault. Your phone charges normally, runs at full speed, and the new battery works exactly as it should — you simply lose the on-screen health percentage unless a genuine cell is paired with Apple's proprietary tool. The warning tucks itself away after a few days. It's a fair trade for a repair that costs a fraction of a new phone, and it in no way affects performance.
Repair vs. upgrade: is it worth it?
A new flagship in 2026 costs $800 or more. A quality XS Max battery costs under $40. For roughly 5% of the price of a new phone, you get a device that once again lasts all day — and the XS Max's OLED display, Face ID, and A12 chip still handle everyday apps just fine.
There's a bigger reason to fix rather than replace, too. Every phone kept in service is one less device in a landfill and a whole new phone's worth of mining, manufacturing, and shipping that never has to happen. A single battery swap is one of the highest-impact things you can do for both your wallet and the planet. When it's time, you can browse our full range of replacement batteries for other models too.
FAQ
How much does an iPhone XS Max battery replacement cost?
Expect about $89 at Apple, $60–$100 at an independent repair shop, or under $40 if you replace it yourself with a quality 3174mAh battery and a basic tool kit. The DIY route saves the most because you skip the labor charge.
How do I replace an iPhone XS Max battery?
Power down, warm the edges to loosen the adhesive, remove the two bottom pentalobe screws, open the screen from the left, disconnect the battery connector first, pull the stretch-release adhesive strips, seat the new 3174mAh cell with fresh adhesive, then reconnect and test. Plan for about 45–60 minutes on your first attempt.
Why is my iPhone XS Max battery draining fast?
After six-plus years the original cell has usually dropped below 80% capacity, so it holds far less charge. Check Settings > Battery Health & Charging for the Maximum Capacity figure. If it's below 80% or shows a Service note, a new battery is the fix. Rule out a runaway app first using the per-app battery breakdown.
My iPhone XS Max is not charging — is it the battery?
Maybe. First try a different Lightning cable and gently clean lint out of the charging port. If it still won't charge, or charges extremely slowly and shuts down early, the battery is likely dead or swollen and should be replaced. Stop using the phone if the screen or back is bulging.
Will I lose Battery Health after installing an iPhone XS Max OEM battery?
The XS Max uses Apple's battery authentication, so any non-Apple-paired battery triggers an "Unable to verify genuine battery" message and hides the Maximum Capacity percentage. Your phone still charges and runs perfectly — you just lose the on-screen health readout. It's a cosmetic software limitation, not a performance issue.
Is it worth replacing the battery instead of buying a new phone?
Yes. A battery under $40 versus an $800 phone is an easy call, and the XS Max still runs modern apps well. Keeping it alive also keeps a device out of the e-waste stream, so it's the greener choice too.
