iPhone 12 Pro Max Battery Replacement: DIY Guide
An iPhone 12 Pro Max battery replacement costs about $89 at Apple, roughly $75 to $129 at a local repair shop, or around $25 to $45 in parts if you fit the 3687 mAh cell yourself. It's a moderate DIY job most patient people can finish in about an hour. The 12 Pro Max carried the biggest battery in the entire iPhone 12 lineup, so when it fades after several years of daily use, the loss of endurance is impossible to miss — and a fresh cell brings that flagship stamina right back.
Launched in late 2020, plenty of 12 Pro Max units are now five-plus years into service, well past the point where the original battery holds a full day. Below is how to read its true health, the signs it's worn out, an honest cost comparison, and what the swap involves. Our position is simple: a tired battery is a consumable, not a reason to scrap a phone that still does everything you ask of it.
How to check your iPhone 12 Pro Max battery health
Open Settings > Battery > Battery Health & Charging and read Maximum Capacity. That number is the share of the original 3687 mAh your battery can still hold. It starts at 100% when new, and Apple treats a cell as worn once it slips to 80% or below. On a phone this large, every lost percentage point of a 3687 mAh battery is a real slice of screen time.
Two more items on that screen matter:
- Peak Performance Capability — a note here means iOS has already throttled the A14 Bionic at least once to head off an unexpected shutdown, a hallmark of an aging battery.
- Cycle count — the 12 Pro Max cell is rated to keep about 80% capacity through roughly 500 full charge cycles. After five years of daily topping-up, most units are comfortably past that, which is exactly why a swap gives this phone a genuine second life.
Why the fade feels worse on a Pro Max
The 12 Pro Max was the endurance king of its generation, so owners simply stopped thinking about charging. When capacity drops to 82% or 80%, the gap between that all-day habit and a phone that now begs for a cable by mid-afternoon is jarring — far more noticeable than on a smaller iPhone. The 6.7-inch OLED and 5G radio pull real power, so a weak battery has nowhere to hide.
Signs your iPhone 12 Pro Max battery is failing
These symptoms usually show up together rather than one at a time:
- Endurance roughly halved — the most common complaint here, because the original runtime set such a high bar.
- Shutdowns above 20% — the phone dies with charge still on the meter, most often in cold weather.
- Sluggish performance — scrolling and app launches feel slower as iOS protects a failing cell.
- Heat while charging — the stainless frame warms up more than it once did.
- Battery swelling — the screen or back glass starts to lift at an edge. Stop charging and using the phone immediately; a swollen lithium cell is a fire and injury risk and must be replaced right away.
- Jumpy percentage — the meter sticks, then falls several points in one jump.
Spot two or three of these next to a Maximum Capacity under 85%, and the answer is clear: it's the battery, not the phone. A part that costs about as much as lunch stands between you and another couple of years of use.
iPhone 12 Pro Max battery replacement cost
Here's the 2026 landscape for the three routes most people take. Ranges are typical across the US and shift by shop and region.
| Option | Typical cost | Turnaround | Notes |
|---|---|---|---|
| Apple (out of warranty) | $89 | Same day to 1 week | Genuine Apple battery, keeps the Battery Health readout intact |
| Local repair shop | $75–$129 | 30 min to same day | Quality varies with the shop and the battery brand fitted |
| DIY with a PhonePartPro battery | $25–$45 in parts | 1–1.5 hrs of your time | Battery plus a reusable tool kit; you supply the labor |
If you still carry AppleCare+ and Battery Health has fallen below 80%, Apple swaps it free — confirm that before paying anyone. Without coverage the gap is wide, because Apple's and a shop's price is mostly labor. The DIY route costs only the iPhone 12 Pro Max replacement battery and a tool set you keep for next time. Searching "iphone 12 pro max battery replacement near me" will surface local shops, but for a phone that still holds solid resale value, spending well under $50 to add years of life is the obvious win.
The exact battery your iPhone 12 Pro Max needs
The iPhone 12 Pro Max uses a 3687 mAh lithium-ion battery at 3.83V — the largest cell in the entire iPhone 12 family, and the reason this model outlasted its siblings. Match that capacity exactly. A cheap cell that quietly comes in under 3687 mAh will hand back the very endurance you're paying to restore, and no honest battery fits more capacity into the same casing.

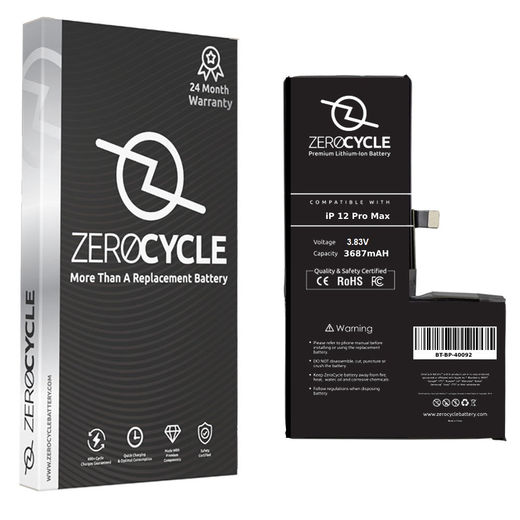

Apple sold the 12 Pro Max under four model numbers across regions: A2342 (US), plus A2410, A2411, and A2412. Every one uses the identical battery, so you never have to match the part to the model number — check yours under Settings > General > About if you're curious, but any 12 Pro Max battery fits any 12 Pro Max. Our ZeroCycle 3687 mAh premium cell is the correct battery for all four, and you can browse everything we stock in the replacement batteries collection.
How to replace an iPhone 12 Pro Max battery: the honest overview
This is a moderate repair, and the large cell is a little fiddlier than smaller iPhones because more adhesive holds a bigger battery in place. Even so, it's well within reach of a careful first-timer. Plan on an hour to ninety minutes in a clean, well-lit spot.
What you'll need
- Pentalobe P2 and Tri-point Y000 screwdrivers
- Suction handle and thin opening picks
- Plastic spudger and tweezers
- A gentle heat source (hair dryer or heat pad) for the display and battery adhesive
- Isopropyl alcohol to release stubborn adhesive
- Your replacement 3687 mAh battery
Step overview
- Power off and remove the two pentalobe screws at the bottom edge beside the Lightning port.
- Warm the edges and lift the display. The screen swings open from the right and stays tethered by fragile ribbon cables — open it like a book and never let it flop.
- Disconnect the battery connector first. Remove its metal bracket and unplug it before touching anything else — this is the non-negotiable safety step.
- Pull the adhesive strips. The big battery sits on several stretch-release tabs; pull each one slow and straight. On a cell this size a snapped tab is common — that's what the isopropyl alcohol is for, to float the battery gently loose.
- Fit the new 3687 mAh battery, reconnect, and power on to test before you seal anything.
- Lay fresh adhesive, close the display, and refit the two screws.
The mistakes that trip up beginners are always the same two: opening the display from the wrong side and tearing a ribbon, or rushing the adhesive. Neither ruins the job, but both cost time. If the tethered display worries you, buy the battery and have a shop install it — you still save on the part.
After the swap: the "Unknown Part" message
Expect this, and don't be alarmed. Once you fit a battery Apple hasn't paired to your specific phone — even an excellent one — iOS posts a notice reading "Unknown Part. Unable to verify this iPhone has a genuine Apple battery," found under Settings > General > About. At the same time, the Battery Health screen stops showing your Maximum Capacity percentage.
What the message actually means:
- No throttling. Your phone charges and runs at full speed.
- Not a knock on quality. It's Apple's pairing system reacting to a battery serial it doesn't recognize, nothing more.
- You lose the capacity readout. That's the real downside — the built-in health tracker goes dark.
The alert appears once, then sits quietly in Settings. Only Apple's own service tools can pair a new battery's chip and clear it, which is the true reason an Apple replacement keeps the readout while a DIY or third-party swap doesn't. For most owners, saving $50 or more easily outweighs losing a number you can gauge yourself from how long the phone lasts.
Repair vs. upgrade: the greener math
When a phone won't hold a charge, the upgrade nag starts to look reasonable. Pause on it. The iPhone 12 Pro Max still runs current iOS, still shoots superb photo and video with its LiDAR-assisted camera system, and has years of updates ahead. The one part that's genuinely used up is the battery — a component Apple always intended to be serviceable.
Most of a smartphone's lifetime carbon is spent building it, long before it reaches your hand, and every device retired early feeds the roughly 60 million tonnes of e-waste the world generates each year. A battery replacement sidesteps all of that — you keep hardware you already own, still worth good money secondhand, for about the price of a takeout dinner.
Repair over replace isn't only the frugal call; it's the responsible one. A new 3687 mAh cell turns a fading 12 Pro Max back into the endurance leader it was. To confirm your model is in stock or find a battery for another device, our battery replacement by model guide covers every phone we carry.
FAQ
How much does an iPhone 12 Pro Max battery replacement cost?
Plan on about $89 at Apple out of warranty, $75 to $129 at a local repair shop, or roughly $25 to $45 if you buy the 3687 mAh battery and fit it yourself. Apple replaces it free if you have AppleCare+ and Battery Health has dropped below 80%.
What is the iPhone 12 Pro Max battery capacity?
The iPhone 12 Pro Max uses a 3687 mAh lithium-ion battery at 3.83V — the largest cell in the entire iPhone 12 lineup. Match that capacity exactly. The same battery fits every model number: A2342, A2410, A2411, and A2412.
Why is my iPhone 12 Pro Max battery draining fast now?
After roughly 500 charge cycles — reached by most units several years in — the 3687 mAh cell's Maximum Capacity falls below 80% and holds far less charge. On a phone famous for all-day endurance, that decline feels dramatic. A new battery restores the original runtime.
Will replacing the battery trigger an "Unknown Part" warning?
Yes, unless Apple pairs the battery to your phone. iOS shows an "Unknown Part" notice and hides your Battery Health percentage. It doesn't throttle or harm the phone — the battery runs at full performance — and only Apple's tools can clear the message.
How hard is it to replace the iPhone 12 Pro Max battery myself?
It's a moderate repair. The larger battery means more adhesive to remove, so it's slightly fiddlier than smaller iPhones — budget an hour to ninety minutes. The tricky parts are opening the tethered display without tearing a ribbon and pulling the adhesive strips without snapping them. Always disconnect the battery first.
Is it worth replacing the battery instead of buying a new phone?
For most people, yes. The 12 Pro Max still runs current iOS with strong cameras and years of support. A $25 to $45 battery restores full endurance for a fraction of a new phone's price, keeps a working device out of the landfill, and avoids the heavy carbon cost of building a replacement.
