Galaxy S22 Ultra Battery Replacement: Cost & Guide
A Galaxy S22 Ultra battery replacement runs about $89 through Samsung's authorized service, $80 to $130 at a local repair shop, or roughly $25 to $45 if you buy the 5000 mAh cell and fit it yourself. The S22 Ultra was Samsung's do-everything flagship — a 6.8-inch LTPO display running up to 120Hz, an integrated S Pen, and the largest battery in the S22 line. That big 5000 mAh pack disguises wear for a long time, which is exactly why owners are often surprised when endurance suddenly falls off a cliff around the three-year mark.
Below is the full picture: how to read your battery's real health in One UI, the warning signs to watch, an honest cost comparison, and what the DIY swap actually demands on a phone built like this one. Our stance is simple — a worn battery is a consumable, not a reason to retire a phone that still flies.
How to check Galaxy S22 Ultra battery health
Samsung buried the readout, but it is there. Go to Settings > Battery and device care > Battery > Diagnostics. On One UI 5 and later, you'll see a Battery health rating expressed in plain language — Good, Normal, or Weak — rather than a percentage. A phone launched with the S22 Ultra typically holds "Good" for the first couple of years; a slide to "Normal" or "Weak" is the diagnostic that a fresh cell is due.
Samsung doesn't hand you a Maximum Capacity number the way Apple does, so if you want a hard figure, install a free app like AccuBattery. It estimates your true remaining capacity against the original 5000 mAh by measuring real charge sessions — be honest with yourself about it, though: the estimate only sharpens after several full charge cycles, so give it a few days before trusting the number. If your S22 Ultra is running an older One UI build with no Diagnostics screen at all, AccuBattery is the most reliable way to gauge wear.
Why the big battery masks its own decline
A 5000 mAh cell has so much headroom that early degradation hides inside your daily surplus — you simply charge a little more often and never notice. By the time the loss is obvious, the battery is usually well past 80% of its original capacity and the 120Hz LTPO panel, 5G radios, and S Pen features have less and less reserve to draw on. If your Galaxy S22 Ultra battery is draining fast despite light use, that hidden decline finally catching up is almost always the cause.
Signs your Galaxy S22 Ultra battery is failing
These symptoms tend to arrive together rather than one at a time:
- Half-day endurance — a phone that comfortably cleared a full day now begs for a charger by mid-afternoon.
- Shutdowns with charge left — the phone powers off at 20% or 30%, most often in cold weather.
- Sluggish, warm performance — the frame heats up under load and the interface stutters as the system throttles a weak cell.
- Slow or stalled charging — 45W fast charging no longer behaves, or the phone tops up far slower than it used to.
- Battery swelling — the back glass or display lifts at an edge, or the S Pen slot feels tight. Stop charging and using the phone immediately; a swollen cell is a genuine fire risk and must be replaced right away.
- Jumpy percentage — the meter freezes, then drops several points in one step.
See two or three of these next to a "Normal" or "Weak" Diagnostics rating, and the verdict is clear: it's the battery, not the phone. A cell that costs less than a nice dinner stands between you and another couple of years of use.
Galaxy S22 Ultra battery replacement cost
Here's the 2026 landscape for the three routes most owners take. Ranges are typical for the US and vary by shop and region.
| Option | Typical cost | Turnaround | Notes |
|---|---|---|---|
| Samsung authorized service | $89 | Same day to 1 week | Genuine Samsung battery, handled by Samsung or a partner like uBreakiFix |
| Local repair shop | $80–$130 | 1 hr to same day | Quality depends on the shop and the battery brand they fit |
| DIY with PhonePartPro battery | $25–$45 in parts | 1.5–2 hrs your time | Battery plus adhesive and a reusable tool kit; you provide the labor |
Samsung's labor is most of that $89, and a shop charges a similar premium for the time. The DIY route only costs you the Galaxy S22 Ultra replacement battery and a tool set you keep for the next repair. For a phone that still commands strong resale value, spending around $35 to add years of life is the clear win — and for anyone typing "galaxy s22 ultra battery replacement near me," the nearest option can be your own desk.
The exact battery your Galaxy S22 Ultra needs
The S22 Ultra uses a 5000 mAh lithium-ion battery, Samsung part number EB-BS908ABY. Match that capacity exactly. A cell that quietly comes in under 5000 mAh hands back less of the endurance you're paying to restore, and no honest battery claims more capacity in the same casing. When you shop for a Galaxy S22 Ultra OEM battery, capacity and the correct part number are the specs that matter most.
The S22 Ultra shipped worldwide under the SM-S908 family — sold as SM-S908U in the US, plus SM-S908B, SM-S908E, and SM-S9080 across other regions. They all take the identical EB-BS908ABY cell, so you never need to chase the exact variant — check yours under Settings > About phone if you like, but any S908 battery fits any S22 Ultra. You can browse everything we stock in the replacement batteries collection.

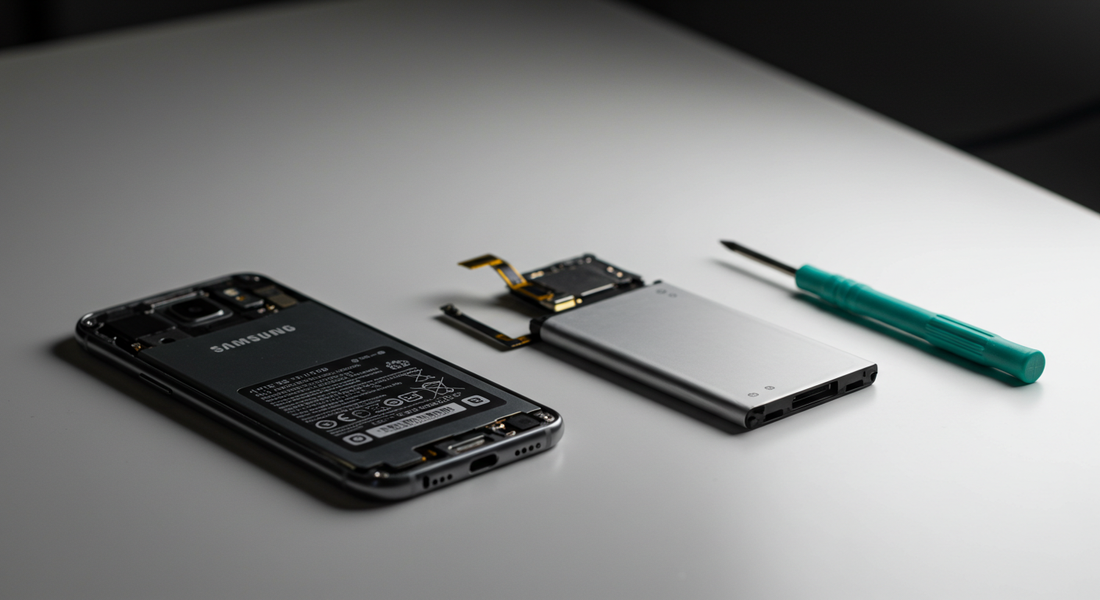

How to replace a Galaxy S22 Ultra battery yourself
Be straight with yourself first: this is an advanced repair, harder than any iPhone battery swap. The S22 Ultra opens from the back, and the glued rear glass has to come off with heat before you can reach anything. Plan on ninety minutes to two hours in a clean, well-lit workspace, and don't attempt it if you're not comfortable working with heat and thin pry tools.
What you'll need
- Heat source — a hair dryer, heat gun on low, or heat pad to soften the rear-glass adhesive
- Suction cup and thin opening picks
- Phillips #00 screwdriver and a plastic spudger
- Tweezers and isopropyl alcohol to release the battery adhesive
- Your replacement 5000 mAh battery and fresh adhesive strips or B-7000 glue for the back cover
Step overview
- Heat the rear glass and slice the adhesive. Warm the edges, work a pick around the perimeter, and lift the back cover slowly — the fingerprint sensor and any NFC/charging coil flex may be attached, so open it like a hinged lid.
- Remove the plastic mid-frame cover over the motherboard, held by several Phillips screws, to expose the battery connector.
- Disconnect the battery first. Unplug the battery flex before touching anything else — the non-negotiable safety step.
- Release the battery adhesive. The 5000 mAh cell is glued firmly; drip isopropyl alcohol around the edges and lift with steady, even pressure. Never bend, pry hard against, or puncture the cell.
- Fit the new 5000 mAh battery, reconnect, and power on to test before sealing anything.
- Re-seat the mid-frame, re-adhere the back glass with fresh adhesive, and let it set under light pressure.
The two mistakes that catch beginners are cracking the rear glass by rushing the heat step and deforming the cell while prying. If the glued back glass makes you nervous, buy the battery here and let a shop do the install — you still save on the part.
After the swap: calibration and what to expect
Good news for Samsung owners: unlike Apple, Samsung generally does not lock out the battery readout or throw a persistent "non-genuine part" nag after a third-party swap, and the Diagnostics screen keeps working. But the estimate needs a moment to catch up. Run a calibration cycle: let the phone drain to near zero, then charge it uninterrupted to 100% and leave it a little longer, and repeat once or twice over the following days. This lets One UI's fuel gauge relearn the fresh 5000 mAh capacity so the percentage tracks accurately and the Diagnostics rating settles back to "Good."
If your S Pen behaved oddly during the repair, don't worry — the digitizer is independent of the battery, and a quick restart restores normal pen tracking once everything is reseated.
Repair vs. upgrade: the greener math
When a phone won't hold a charge, the upgrade prompt starts to look reasonable. Resist it for a moment. The Galaxy S22 Ultra still runs current One UI, still shoots superb photos with its 108MP sensor, and still has the S Pen no cheaper phone offers. The one part that's genuinely used up is the battery — a consumable by design.
Most of a smartphone's lifetime carbon is spent building it, long before it reaches your hand, and every device retired early feeds the roughly 60 million tonnes of e-waste the world generates each year. A battery replacement sidesteps all of that: you keep hardware you already own — still worth real money secondhand — for about the cost of lunch out. Repair over replace isn't just the frugal call, it's the responsible one. To confirm your model is in stock or find a cell for another device, our battery replacement by model guide covers every phone we carry.
FAQ
How much does a Galaxy S22 Ultra battery replacement cost?
Plan on about $89 through Samsung's authorized service, $80 to $130 at a local repair shop, or roughly $25 to $45 if you buy the 5000 mAh battery and install it yourself. The DIY route is cheapest because you supply the labor.
What is the Galaxy S22 Ultra battery capacity?
The Galaxy S22 Ultra uses a 5000 mAh lithium-ion battery, Samsung part number EB-BS908ABY. Choose a replacement that matches that capacity exactly. The same cell fits every SM-S908 variant, including SM-S908U, SM-S908B, SM-S908E, and SM-S9080.
Why is my Galaxy S22 Ultra battery draining fast?
The big 5000 mAh cell hides its decline for years, so by the time drain is obvious the battery is usually past 80% of its original capacity. The 120Hz LTPO display and 5G radios have less reserve to draw on, so runtime falls off quickly. A new battery restores the original endurance.
How do I check battery health on a Galaxy S22 Ultra?
Go to Settings, Battery and device care, Battery, then Diagnostics. On One UI 5 and later it shows a Battery health rating of Good, Normal, or Weak. Samsung doesn't display a percentage, so for a hard number use a free app like AccuBattery, which sharpens its estimate after a few charge cycles.
How hard is it to replace a Galaxy S22 Ultra battery yourself?
It's an advanced repair — budget ninety minutes to two hours. The phone opens from the back, so you must soften and remove the glued rear glass with heat before reaching the battery, then release strong adhesive without deforming the cell. Always disconnect the battery connector first.
Will a new battery trigger a warning on my Galaxy S22 Ultra?
Samsung generally does not lock the battery readout or show a persistent non-genuine-part warning after a swap, and the Diagnostics screen keeps working. Run a calibration cycle — drain to near zero, then charge uninterrupted to 100%, once or twice — so One UI relearns the fresh 5000 mAh capacity.
